Laser 4p Machine
Laser 4p Machine

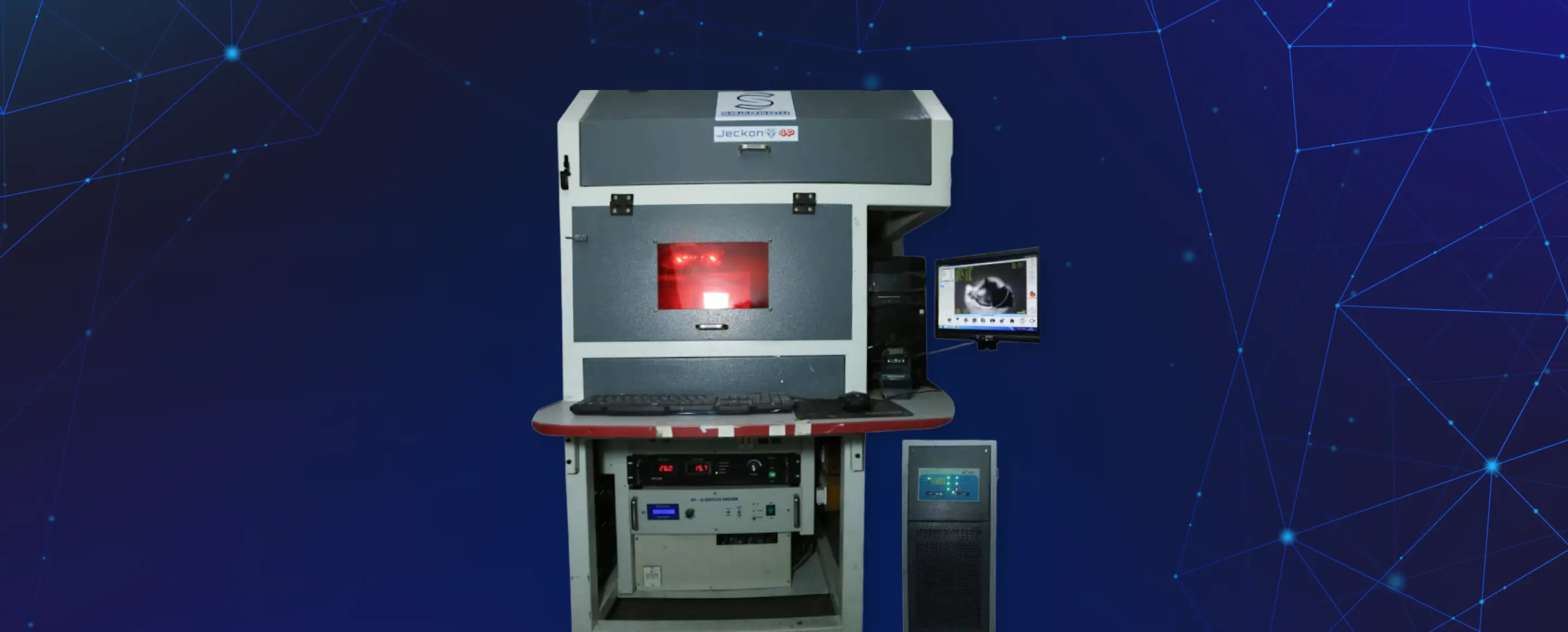

The 4P laser machine is a sophisticated diamond polishing system that combines precision engineering with advanced technology. At its core is a ND-YAG laser source operating at 1064 nm wavelength with TEM00 beam mode, delivering 20 watts of output power - making it ideal for precise diamond polishing applications.
FeaturesFeatures
Features
High Precise & Long
Life CNC Axis
Life CNC Axis
Auto
Frequency
Frequency
Higher
Production
Production
High Praising
X-Y-Z Table
X-Y-Z Table
Low Breakage
Rate
Rate
User-Friendly
Software
Software
Secure and Password
Protected System
Protected System
Low-power
Consumption
Consumption
Highly Precise
BENDING Process
BENDING Process
Low-Maintenance
Operation
Operation
Technical Specifications
Technical Specifications
Laser Source
ND-YAG
Wave Length
1064 nm
Beam Mode
TEM00
Laser Output Power
20 Watt
X.Y.Z Axis Travel
140/140/70 mm
Resolution
1 Micron
Computer System
Intel Dual Core
Driver
AC Servo
Temperature
20°C to 25°C
Power Consumption
<1KVA
Dimension (mm)
1600 x 850 x 1500
Electrical Connection
230 (± 10%) V
